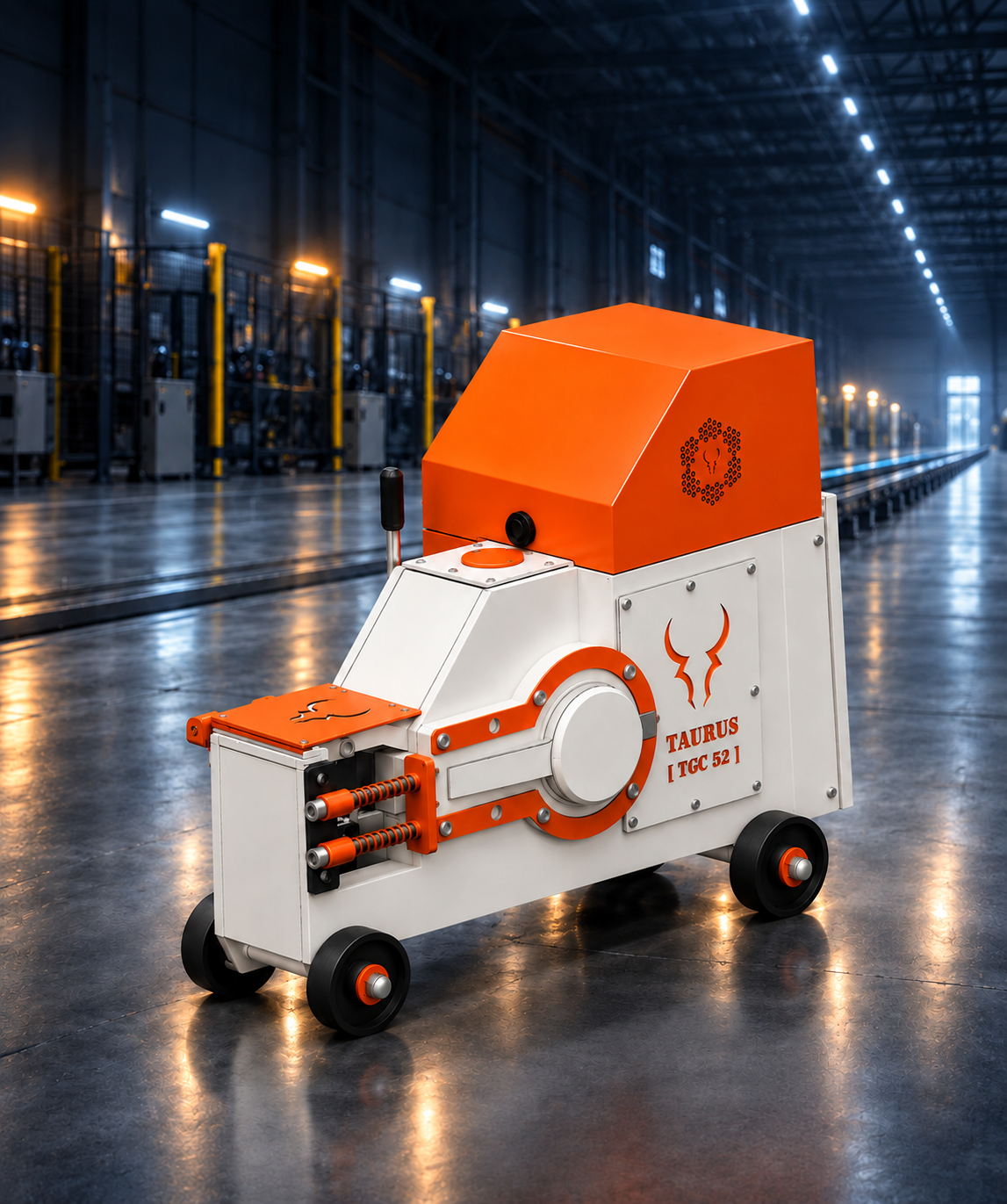

Heavy-duty rebar cutting machine built for continuous high-speed reinforcement steel shearing on major infrastructure and building sites.
Engineered for high-volume, reliable rebar shearing. Compare full technical parameters across all three models.
| Specification / Parameter | TGC 42 | TGC 52 | TGC 55 |
|---|---|---|---|
| Max Bar Diameter | 36 mm | 40 mm | 40 mm |
| Motor Power | 5 HP / 3.7 kW | 5 HP / 3.7 kW | 7.5 HP / 5.5 kW |
| Motor RPM | 2875 RPM | 2875 RPM | 2875 RPM |
| Cutting Stroke / min | 60 approx | 38 approx | 38 approx |
| Dimensions (L x W x H) | 1090 x 450 x 869 mm | 1115 x 480 x 935 mm | 1255 x 500 x 1025 mm |
| Overall Weight | 400 kg | 556 kg | 780 kg |
| Oil Capacity | 4.25 L | 7 L | 10 L |
Values specify the number of steel reinforcement bars that can be cut simultaneously per stroke across various tensile strengths.
| Tensile Strength of Bars | TGC 42 | TGC 52 | TGC 55 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36 | 32 | 25 | 20 | 16 | 12 | 10 | 8 | 40 | 36 | 32 | 25 | 20 | 16 | 12 | 10 | 8 | 40 | 36 | 32 | 25 | 20 | 16 | 12 | 10 | 8 | |
| 41 – 50 kg/mm² | 1 | 1 | 1 | 1 | 2 | 3 | 4 | 5 | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 6 | 8 | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 7 | 8 |
| 51 – 60 kg/mm² | - | 1 | 1 | 1 | 2 | 3 | 3 | 4 | - | 1 | 1 | 1 | 2 | 3 | 4 | 6 | 8 | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 7 | 8 |
| 61 – 70 kg/mm² | - | - | - | 1 | 2 | 3 | 3 | 4 | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 | 7 | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 6 | 8 |
| 71 – 78 kg/mm² EQR | - | - | - | 1 | 2 | 3 | 3 | 4 | - | - | 1 | 1 | 2 | 3 | 4 | 5 | 7 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 6 |
Meticulously designed for safety, component longevity, and high-torque mechanical efficiency under extreme site conditions.
Precision-cut gears engineered for 100% efficient power transmission and maximum gear life.
Heavy duty internal spring mechanism engineered to absorb cutting shock and avoid site accidents.
Equipped with smooth guide rollers for effortless bar handling, accurate alignment, and clean marking.
Hardened rod guide plate designed to minimize surface friction and drastically reduce abrasive wear.
Heavy duty Hand & Foot Lever assembly for ergonomic, low-effort operator control and faster cycle speeds.
Dynamically balanced flywheel engineered for smooth rotational inertia, reduced vibration, and quieter operation.
Self-lubricating bush with internal oil groove design eliminating repetitive external grease requirements.
Sturdy steel protective covers for motor, flywheel, and key drive components ensuring total operator safety.
